φ20-110mm ABA 3-layers HDPE Pipe Making Machine
2024-07-07
ABA 3-layers design
Product Description

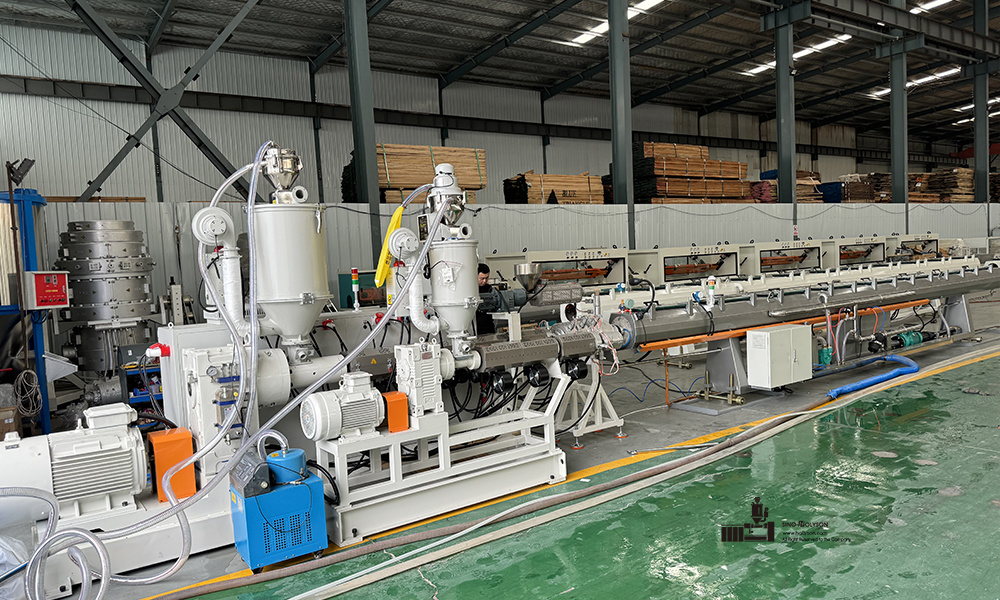

φ20-110mm ABA 3-layers HDPE Pipe Making Machine
This 20-110mm HDPE Pipe Making Machine is a higher speed machine, which size 20/25mm pipe can run upto 20~25m/min. The Main Extruder is installed with 55kw /75kw driving motor, to make sure the output at about 180-250kg/hr. Screw and barrel will use 60/38 higher efficiency design, which has a long LD ratio.
MAIN COMPONENTS of full plant
| NO. | Item | Quantity |
| 1. | HSE-60/38 Higher Efficiency Single Screw Extruder(55/75kw) | 1 set |
| 1.2 | HSJ-45/30 Co-Extrusion Single Screw Extruder(11kw) | 1 set |
| 2. | Die-Head(φ20-110mm) | 1 set |
| 3. | Length 3+6m Vacuum Cooling Water Tank | 1 set |
| 4. | L-9m Bathing Cooling Water Tank | 2 sets |
| 5. | 3-Claws Haul-off/Traction Machine | 1 set |
| 6. | Automatic Non-chips Cutting Machine | 1 set |
| 7. | Pipe Discharger | 1 set |
| 8. | Double Disk Pipe Colier Machine(φ20-50mm) | 1 set |
3-layers HDPE Pipe Mould

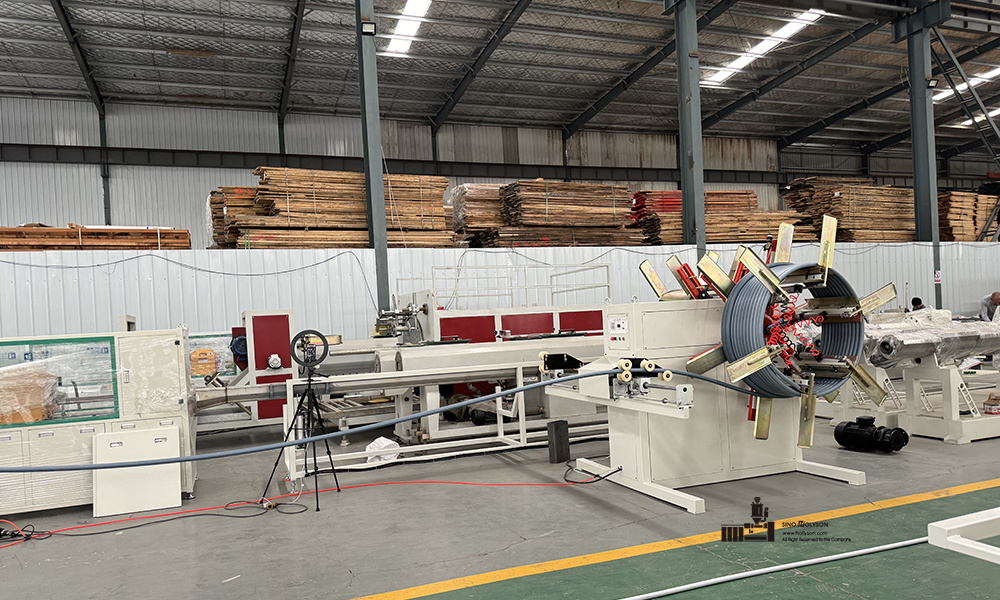

Double Disk Pipe Coiler Machine
This Pipe coiler is mainly used for pipe φ16-50mm into rolls, it can set 50m/ 100m/ 150m per rolls as your preference. A two disk Pipe colier can let it has a spare use, and for replacing the rolls, when one is done, without stop the machine.
HDPE Pipe making machine

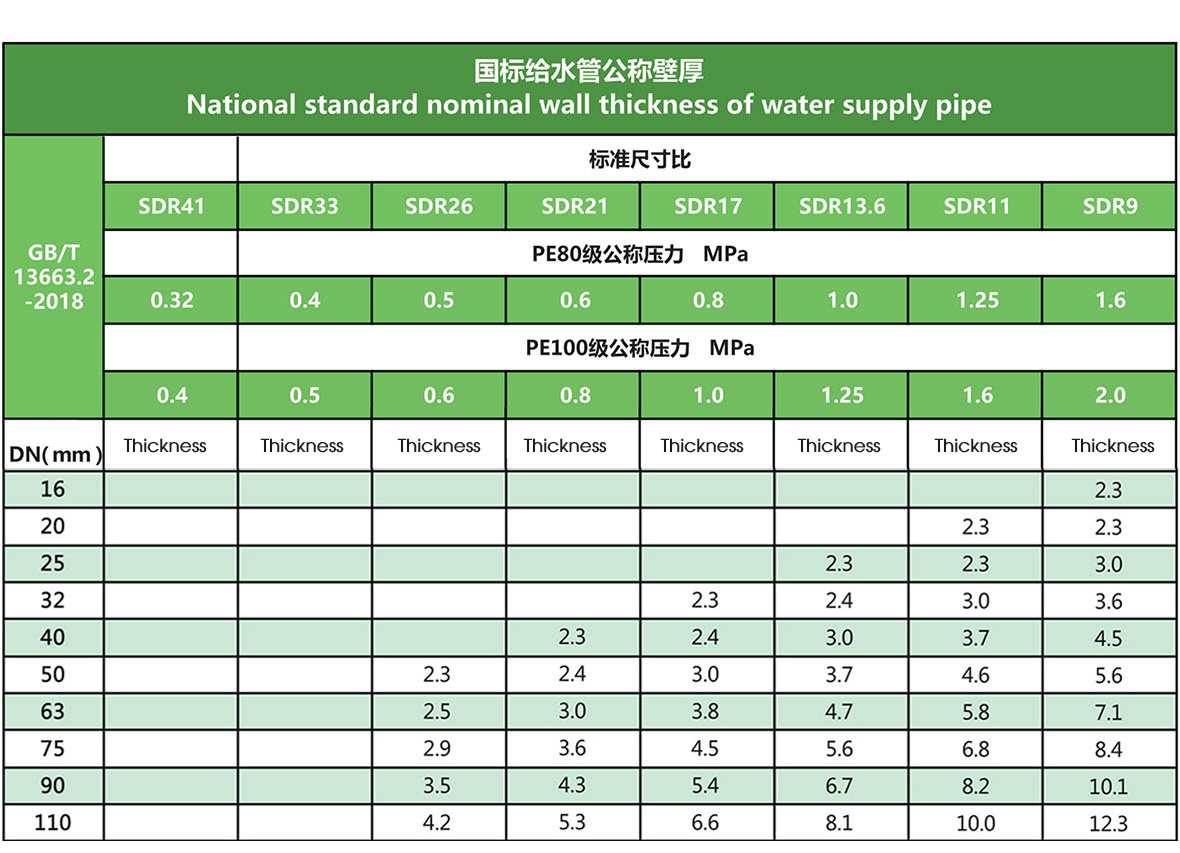

Water Supply HDPE Pipe machine
Spare Used Part Needed
