HSJZ-65/138 “Higher Speed” PVC Wall Panel Making Machine
2024-09-02
Width:250-300mm, Speed 5~8m/min
Product Description
HSJZ-65/138 "HIGHER SPEED" PVC Wall Panel Making Machine
The "Higher Speed" PVC Wall Panel making machine, which becomes more popular choice in recent years.
As the labor cost is going high, and competition getting tense, so nowadays,
more and more workshop are now changing their machine into a higher speed design to improve production ability.
A higher speed machine wil install with "HSJZ-65/138 Conical Twin Screw Extruder", 37kw driving motor.
The designed extrusion speed of this machine can reach upto 6~8m/min.

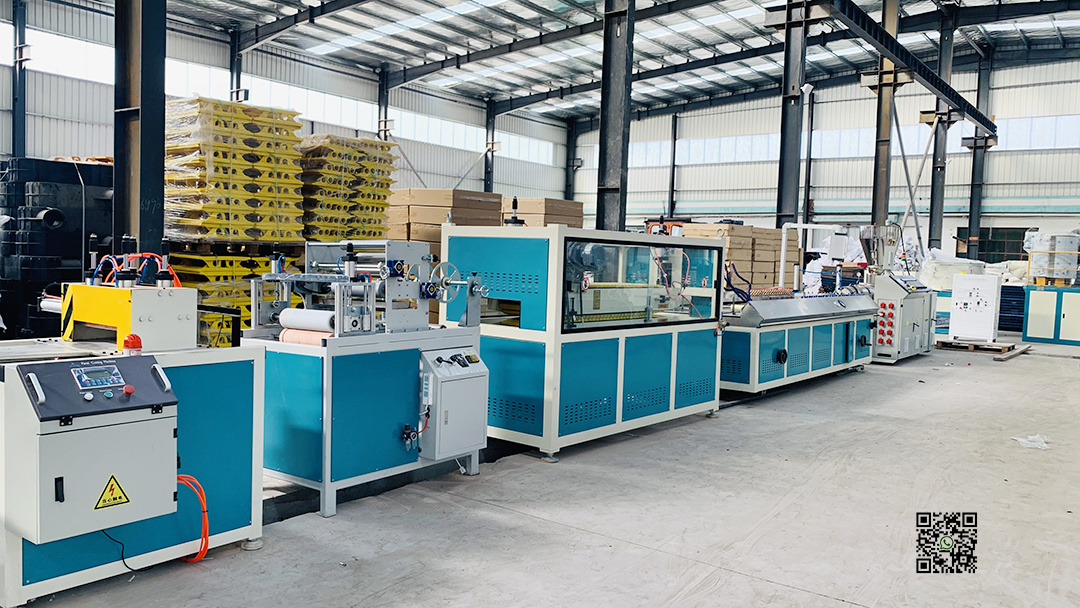

| NO. | Item | Quantity |
| 1. | HSJZ-65/138 Conical Twin Screw Extruder | 1 set |

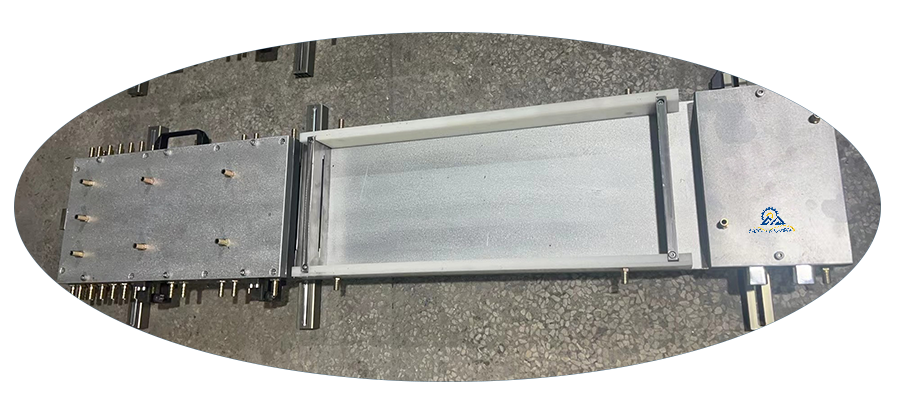

| 2. | "Higher Speed" Mould(width 250/300mm) | 1 set |
| 3. | Length-4m Vacuum Cooling Water Tank | 1 set |
| 4. | Double Caterpillar Haul-off/Traction Machine | 1 set |
| 5. | Pneumatic Cutting Machine | 1 set |
| 6. | Panel Discharger | 1 set |
| 7. | Inline Film Hot-stamping and Laminating Machine | 1 set |
A start-up workshop will necessarily need a high speed Hot/Cold PVC mixer, Plastic crusher, Vibration sieve and Pulverizer machine.

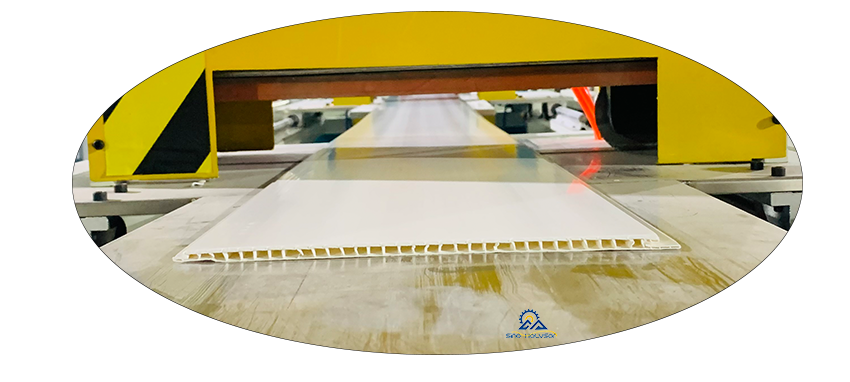

Finished Cutting Section Drawing
PVC wall panel machine
higher speed pvc wall panel machine
pvc wall panel machine
Spare Used Part Needed
