HSJZ-51/105 PVC Angle Line Making Machine
2024-07-29

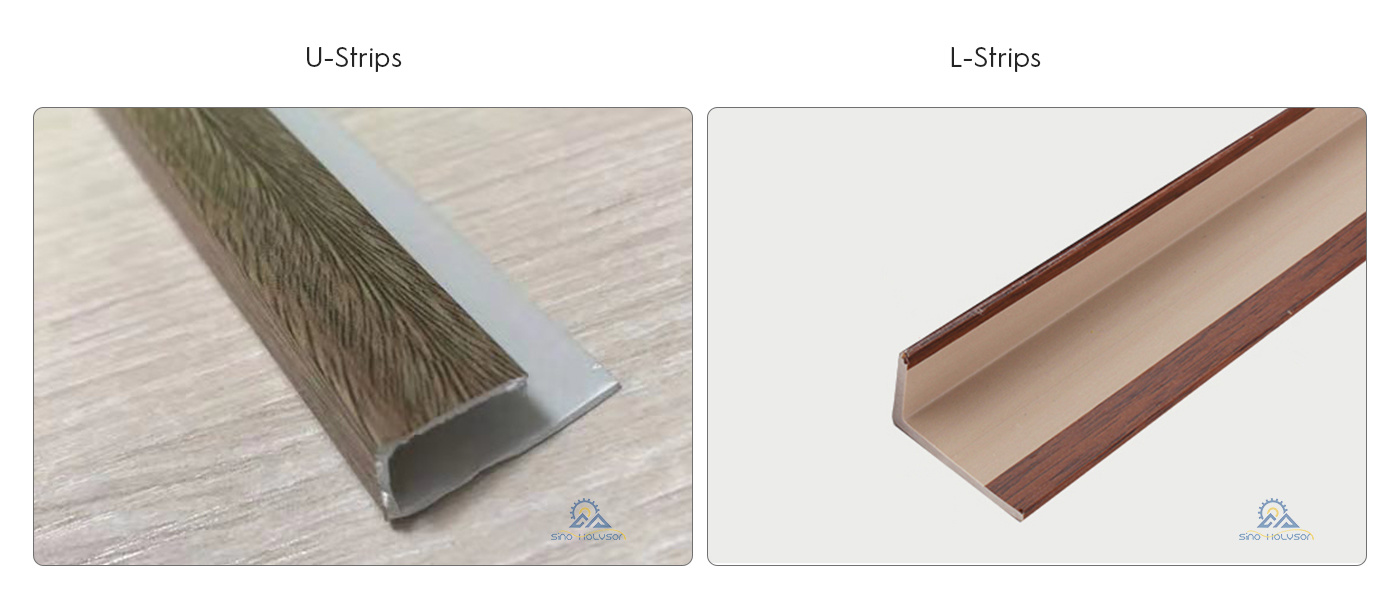

U / L Clips Two-Outlet Mould
This Angle Line Making Machine is Two-Outlet Design, working with 53/128 Conical Twin Screw Extruder, 22kw driving motor. Running Speed can be upto 6-10m/min. Extrusion output at 60-120kg/hr.
WhatsApp
Product Description
HSJZ-53/128 PVC Angle Line Making Machine
This Angle Line Making Machine is Two-Outlet Design, working with 53/128 Conical Twin Screw Extruder, 22kw driving motor. Running Speed can be upto 6-10m/min. Extrusion output at 60-120kg/hr. This machine is same design with PVC Wall Panel Machine, so it will be able to make both PVC Wall/Ceiling Panel, and PVC angle lines, by simply replacing the mould from this plant.
MAIN COMPONENTS of full plant
| NO. | Item | Quantity |
| 1. | HSJZ-53/128 Conical Twin Screw Extruder(22kw) | 1 set |
| 2. | Two Outlet Mould | 1 set |
| 3. | Length-2m Vacumm Calibration Platform | 1 set |
| 4. | Double Caterpillar Haul-off/Traction Machine | 1 set |
| 5. | Pneumatic Cutting Machine(No-Dust/Chip Free Design) | 1 set |
| 6. | Panel Discharger | 1 set |
| 7. | Inline Film Hot-stamping and Laminating Machine | 1 set |

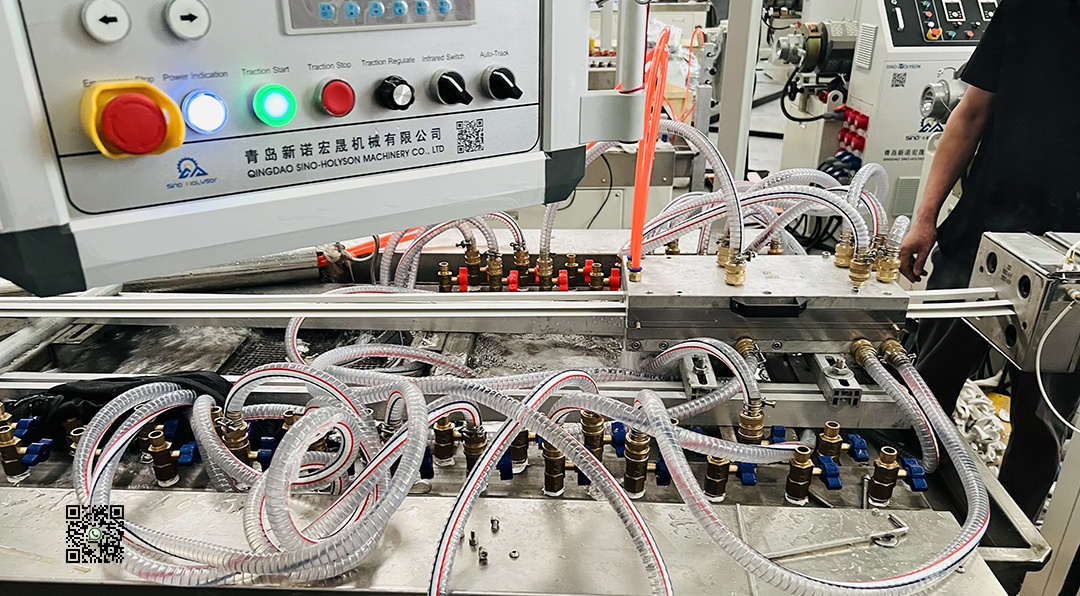

“TWO-OUTLET” Mould Design
key word:
PVC Angle Line Machine
PVC Corner Strip Machine
