HSJ-65 PVC Braided Hose Making Machine
2024-07-27
Dia: 16-50mm 3-layers
Product Description
HSJ-65/28 PVC Braided Hose Making Machine
General Introduction:
HSJ-65 PVC Braided Garden Hose Making Machine
This machine is used to produce Fiber Reinforced PVC Braided Hose/ PVC Garden Pipe. It has three layers, the inner and the outer layer is plastic PVC material and the middle layer is fiber strengthened net. It has good mechanical property and chemical property, which suits for the transportation of high pressure and corrosive air, and water liquid. It is comprehensively used in machinery, colliery, petrol, chemistry, agriculture irrigation, garden water hose,construction,civil products (solar water heater, gas pitcher).

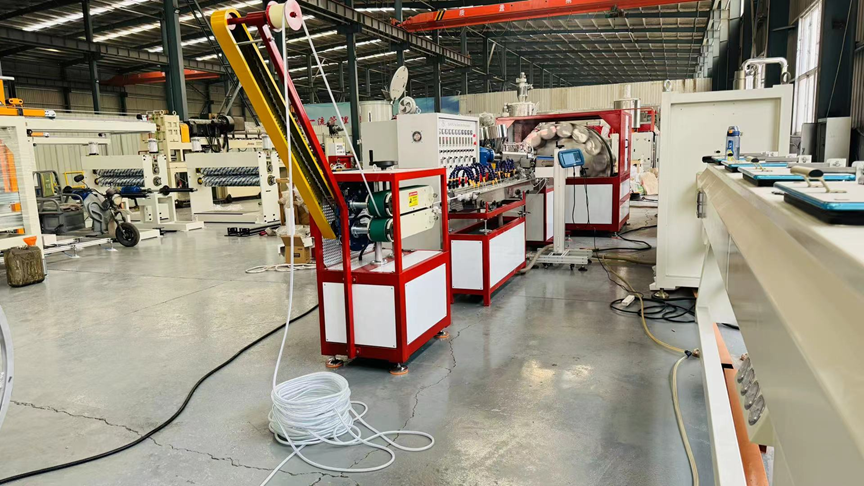

This production line can produce clear PVC hose, PVC braided hose, color PVC fiber knitted hose, garden water hose and PVC non-knitted hose. This production line is composed with Single screw extruders(2 sets), cooling calibration tank(2 sets), haul-off machine(2 sets), Fiber Braiding machine(1 set), heat oven(1 set), hose coiler(1 set), mould and so on. The machine set adopts most advanced international technology and technique, which ensuring a stable and reliable production.
MOLD Design: Diameter:φ16-50mm, customized according to the Sample
TWO DIFFERENT MODELS
There are totally two different models for your choice based on diameter.
Please match your sample size, choose a right model machine
Main Components of a full plant
The following machine units composed one production line.
Only Joecky Extruders are at your optional choice.
8. | ||
HSJ-65/28 Single Screw Extruder
This 65/28 Single Screw Extruder is installed with 15kw driving motor, for processing PVC soft granules specially. Gear reducer will use from top brand Guomao ZLYJ-173 model, with a reliable connection, and higher efficiency distribution, the extruder output can reach upto 45-65kg/hr.
Extrusion Die Head
The molds installed in this production line, totally included two sets, - the first set installed on the first Extruder, working as the inner layer hose extruder. The second set will install on the second Extruder, after the fiber braiding unit.
3-Colors of Marking-Line Design
The 3-color Marking Lines is optional choice.
Either Single/ Double/ Three Color lines design is available for the machine, by installed 1/2/3 sets of jockey extruder. For each color, it needs a separate HSJ-25mm mini extruder. The mould uses Higher Quality Mould Steel, which is very high strong, wear-resistant, with hard chrome plated, it will guarantee long term service life.
Quenching Cooling Water Tank
The Cooling water tank works to cool down the hose after the extruder machine.The water tank material adopts S.S. 304 Stainless Steel, with Chrome Painting, will effectively avoid its rust problem, and guarantee a long time service life.
The whole production line involves two sets cooling water tank, first one for inner layer cooling and second for outer coating layer cooling work.

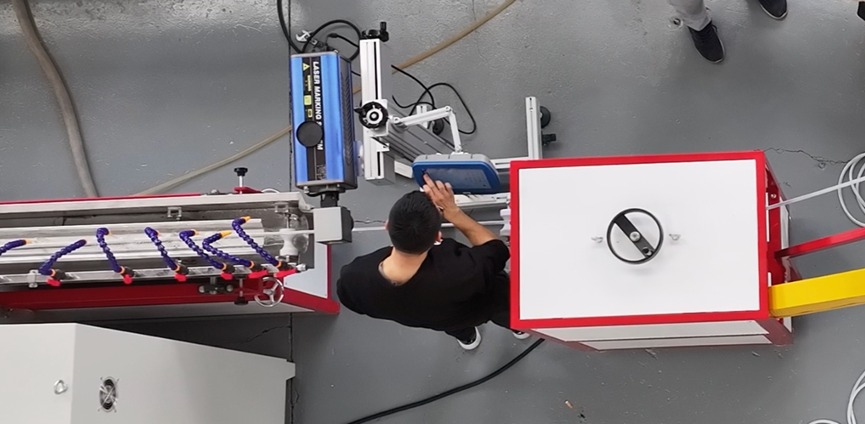

Haulf-off/Traction Machine
This Two-Caterpillar Traction/ Haul-off machine is designed for continuous and steady pull the hose moving forward; Its compact and absolute stability features make it great guarantee for stable production. Each Belt is driven by frequency motor, can automatically change its working speed synchronous with the whole production line speed.

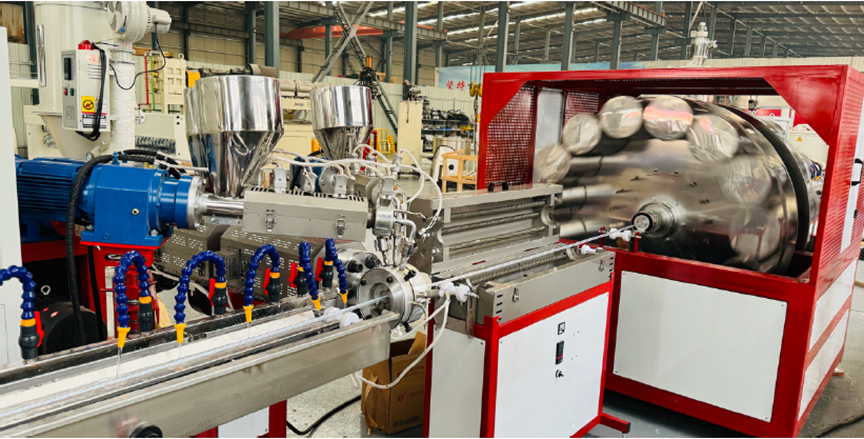

Fiber/Yarns Braided Machine
The Braiding/Weaving machine is for making the middle fiber braided layer, to strength the pipe, so that the pipe can tolerate more water pressure. By using different density yarns, you will get different pressure rate hose.
The Weaving Machine is mounted with two groups of bobbin bucket, each group rotate at a different direction. We supply two different model weaving machine: 1.5kg / 4kg bobbin design.

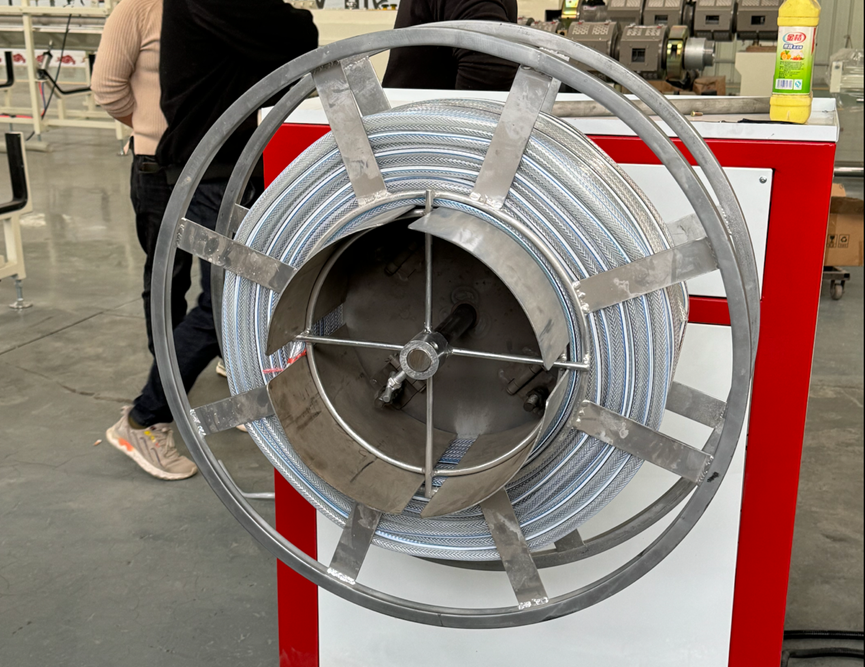

Pipe Coiler/Winder Machine
This is semi-automatic Pipe Coiler/Winder, it will coiled the hose into rolls, at your set length(for example at per 25m/50m).
